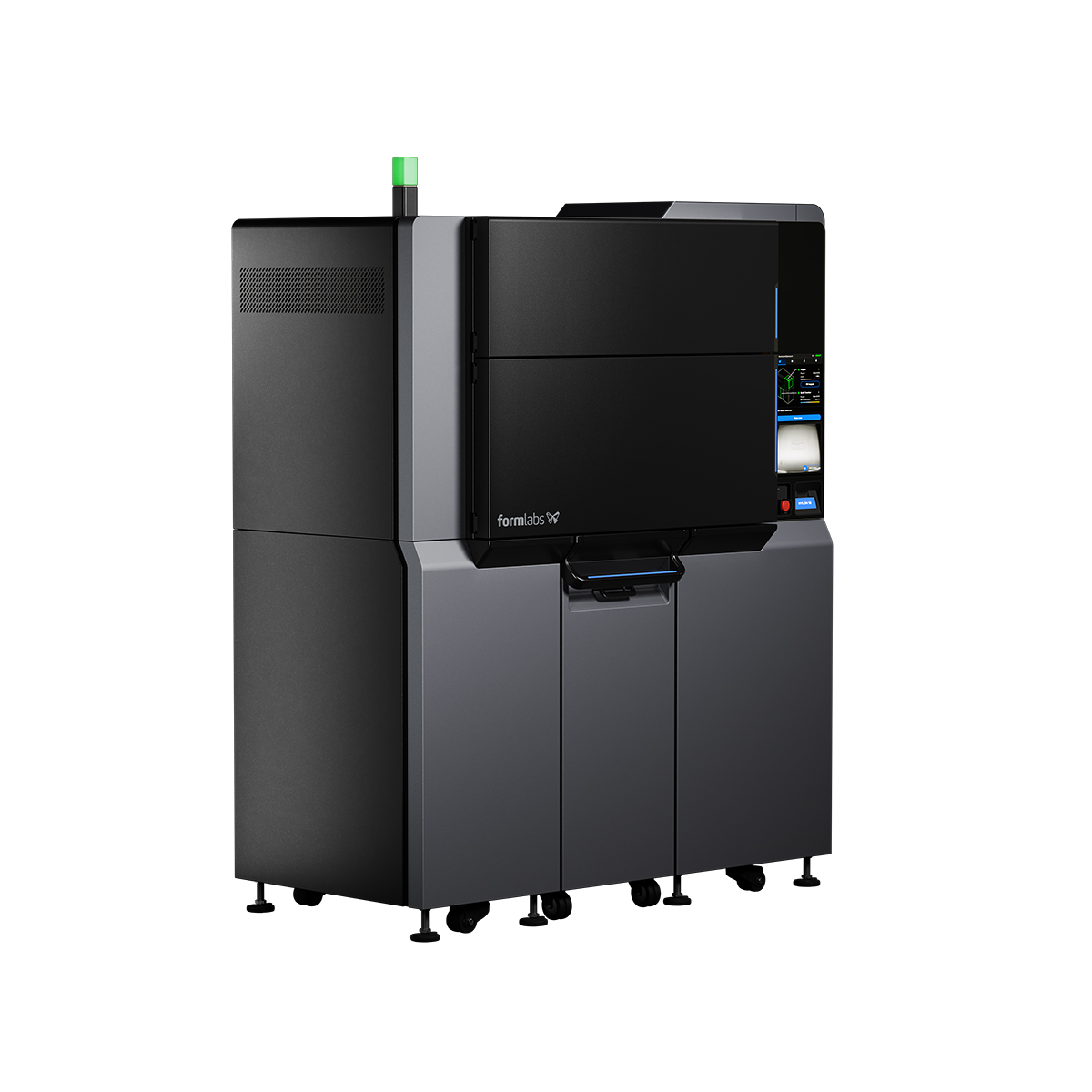

Formlabs Fuse X1 SLS Printer

    REQUEST A QUOTE

Starting at $84,999, the Formlabs Fuse X1 combines the known reliability and consistency of the Formlabs ecosystem with industrial SLS throughput. Production quality parts are made in a massive 61.5L build volume enabling run production builds at over 30% packing density, allowing manufacture of thousands of end-use parts in days, not weeks. The Fuse X1 is a production solution cost-competitive with injection molding for tens of thousands of parts. To keep up with industrial throughput demands, the Fuse X1 features a packing density of 30%+ and a 330 × 330 × 565 mm build chamber to fit more parts in a single build. This advancement adds up to thousands more parts per week. Industrial throughput is now possible in previously inaccessible facilities. The Fuse X1 fits through a standard door, doesn’t require facility retrofit, and installs and prints on day one. An intuitive touchscreen guides you, while the Build Unit enables 5-minute changeovers.

Why Choose Source Graphics?

Ask our Experts

Call Us | Email Us | Request Callback

Features

Specifications

Model
PRT-PKG-FS1-120V
Manufacturer
Formlabs
Build Volume
330 × 330 × 565 mm | 13.0 × 13.0 × 22.2 in (61.5 L)
Layer Thickness
110 microns | 0.004 in
Laser Type
Ytterbium Fiber, 120 W
Laser Spot Size
330 microns | 0.012 in
Throughput
0.330 sintered kg/hr
Max Packing Density
30%+ (volume), 48%+ (mass)
Material Refresh Rate
As low as 20%
Materials
Nylon 12, Nylon 11*, Nylon 12 GF**, TPU**, Open Material Mode
Print Intelligence
AI-powered real-time print failure prevention
Footprint
1.3 m^2 / 14.1 ft^2
Power Requirements
200-240VAC single phase, 50/60Hz, 50A rating
Warranty and Services
Production and Self-Service plans available.
*Nylon 11 release planned for end of 2026 **Nylon 12 GF and TPU release planned for 2027

Watch the Video

Request a Consultation

Schedule a free consultation to get a Formlabs SLS Sample Part sent straight to your door.

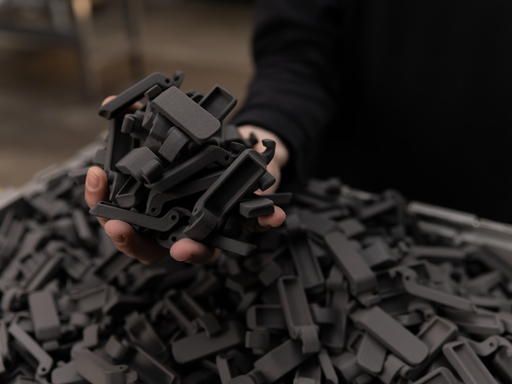

mixer_latches_printed_on_Fuse_X1
