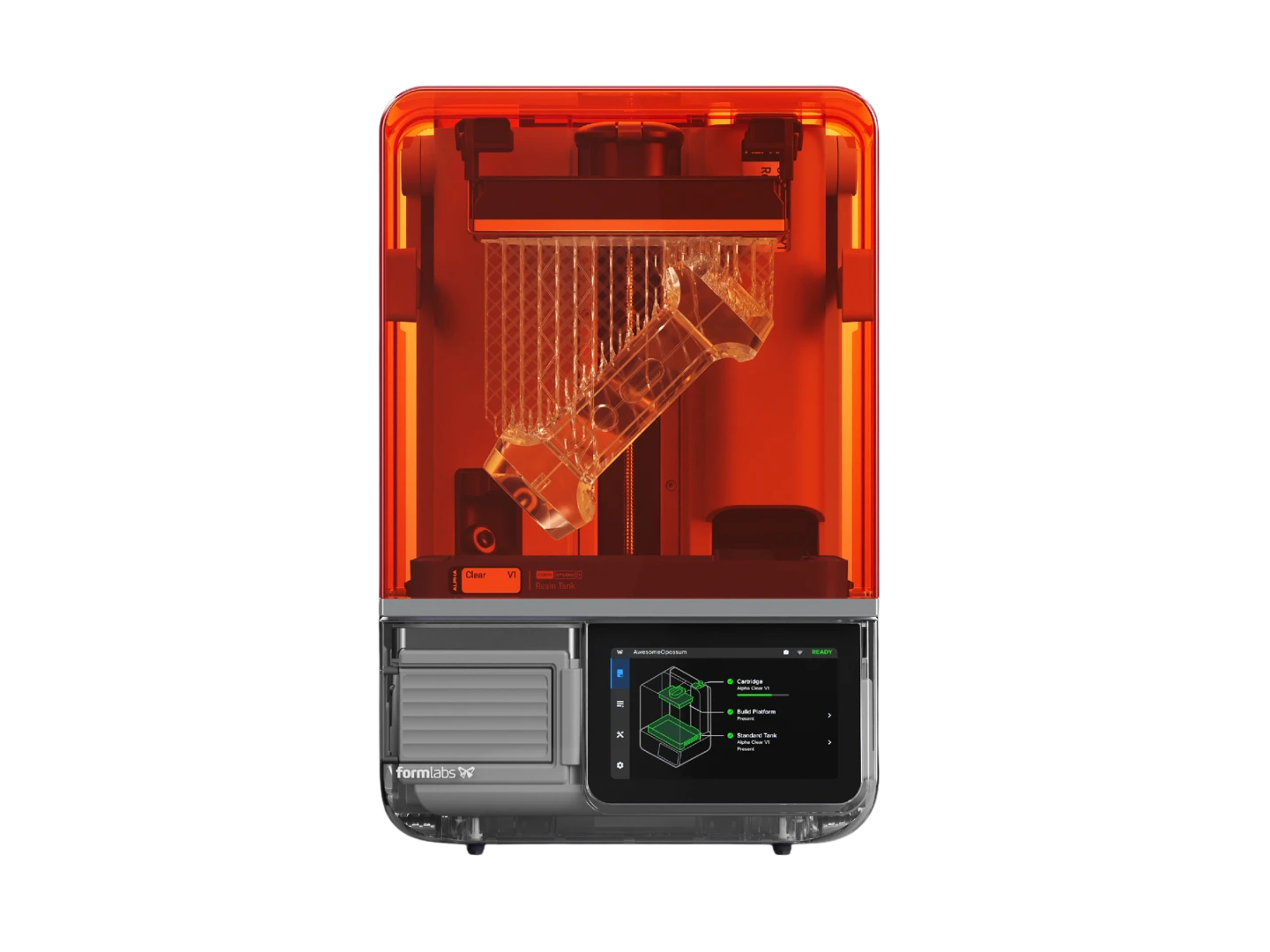

Formlabs Studio 1 3D Printer

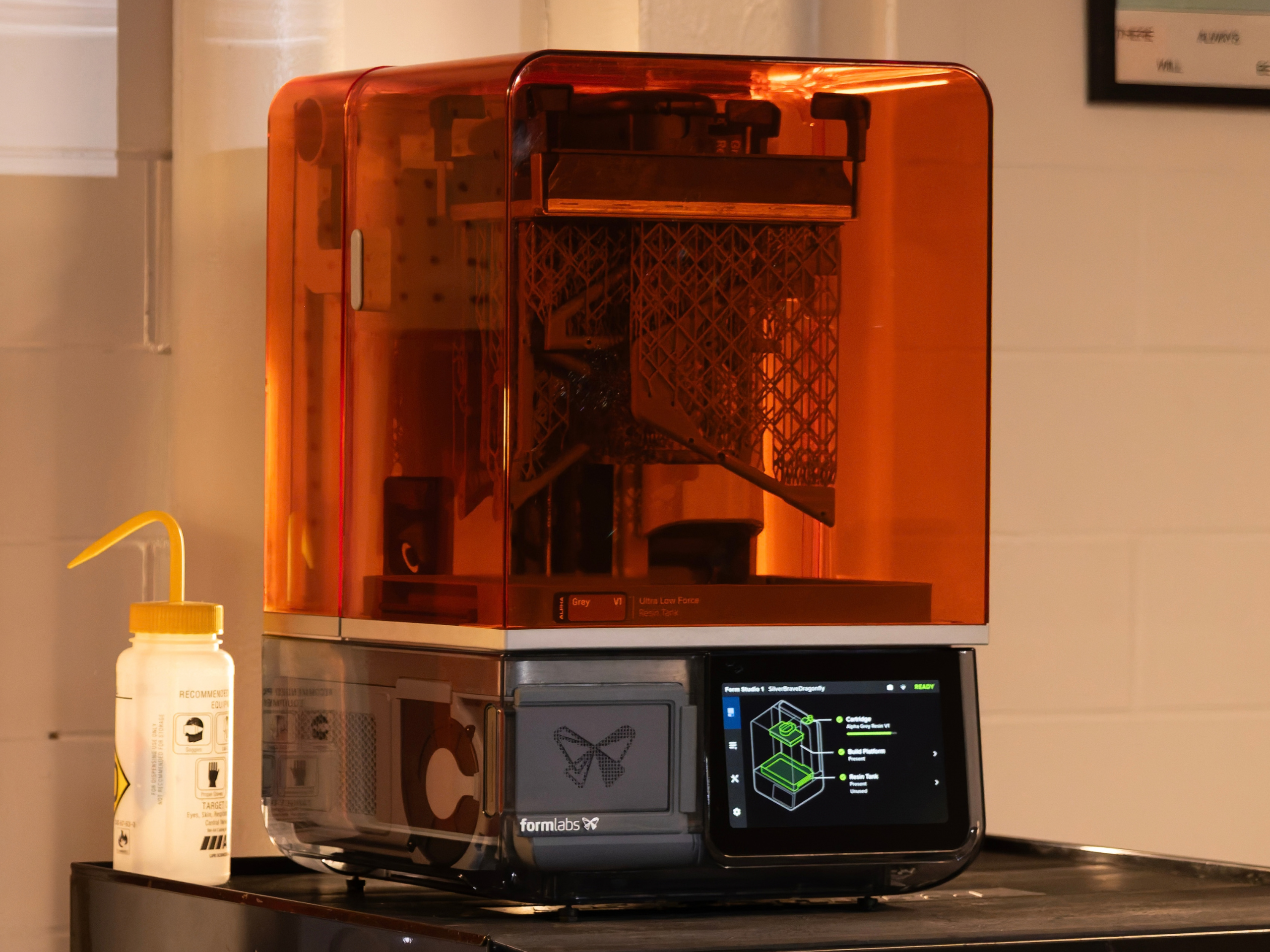

Formlabs Studio 1 3D Printer - Image 2

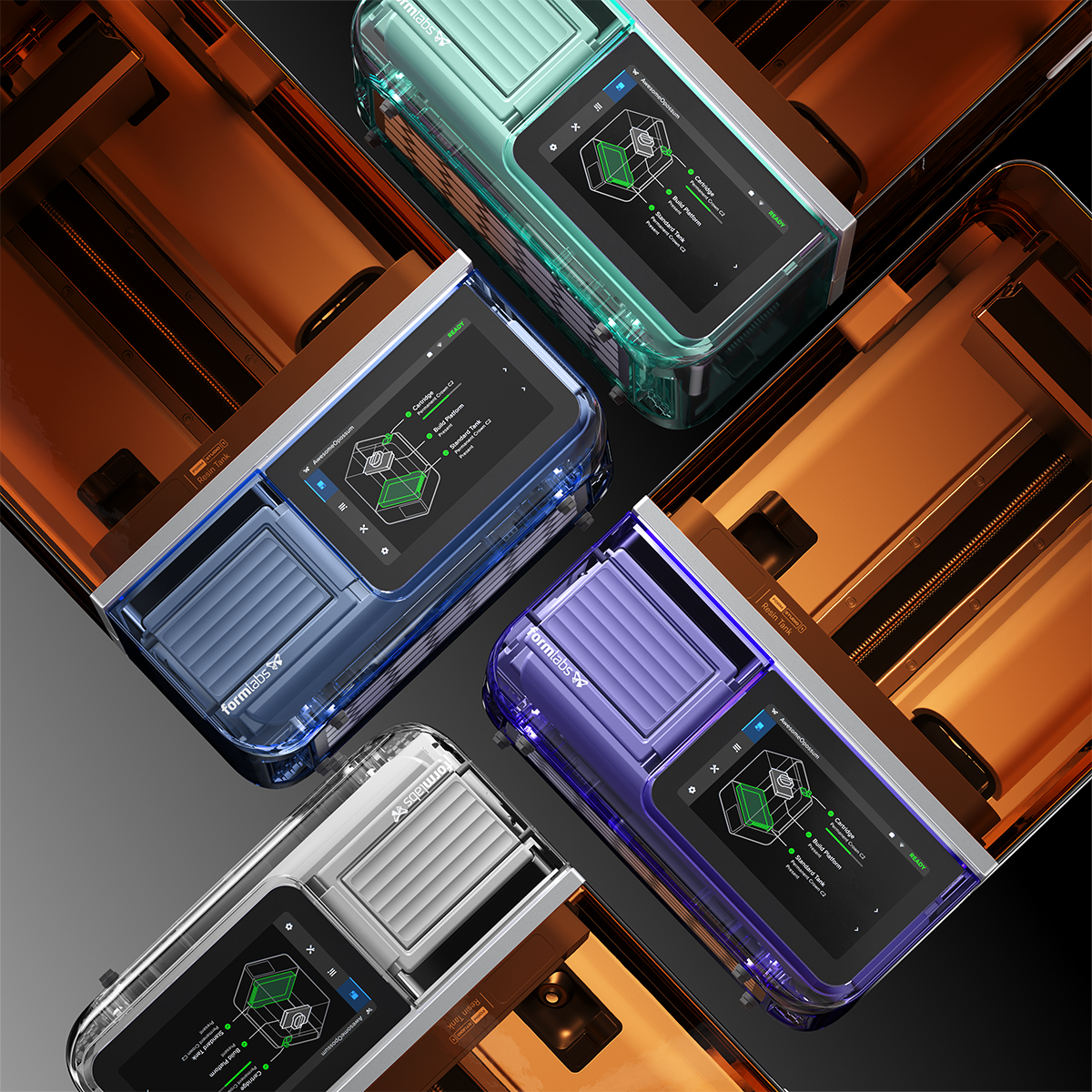

Formlabs Studio 1 3D Printer - Image 3

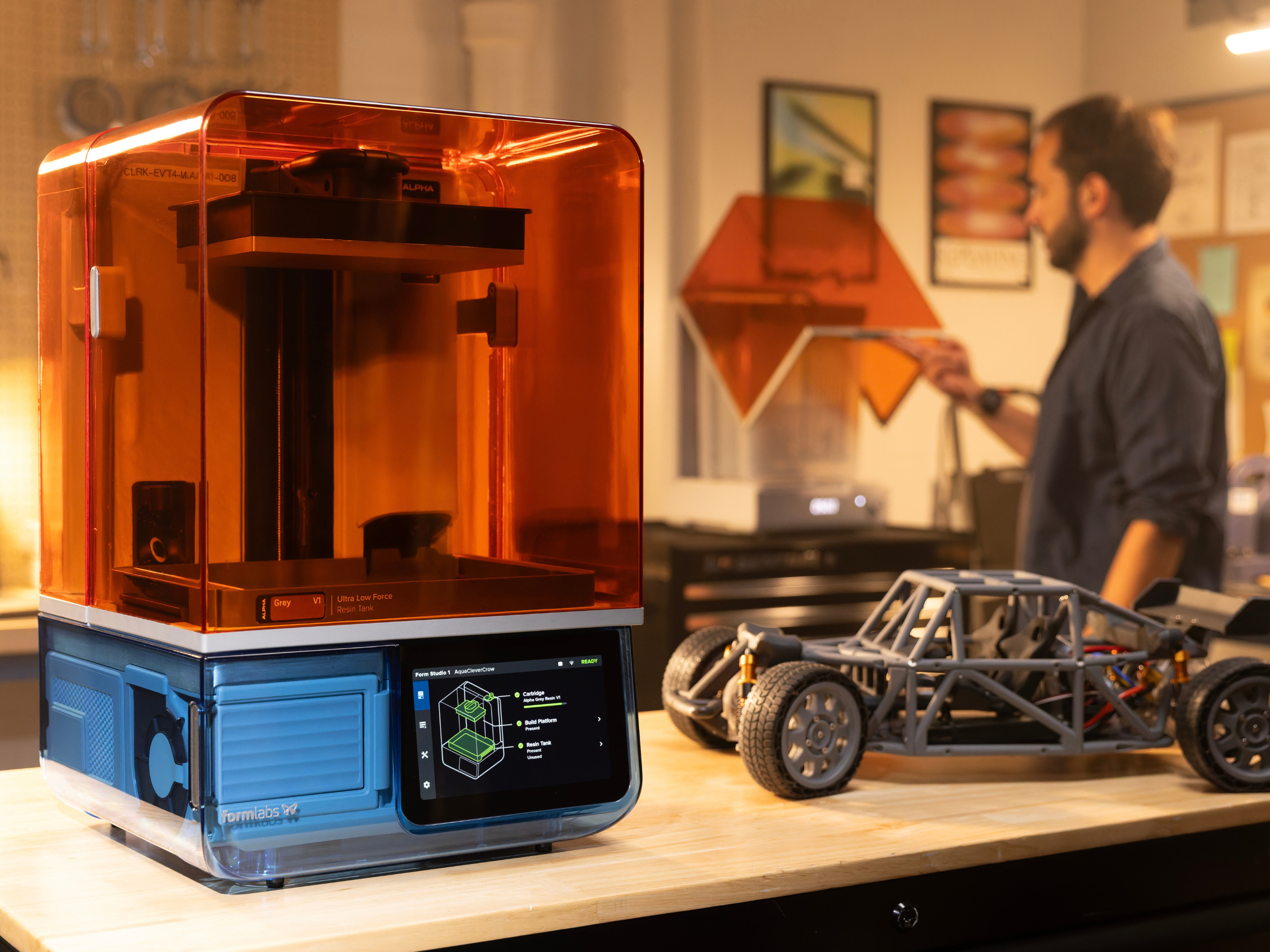

Formlabs Studio 1 3D Printer - Image 4

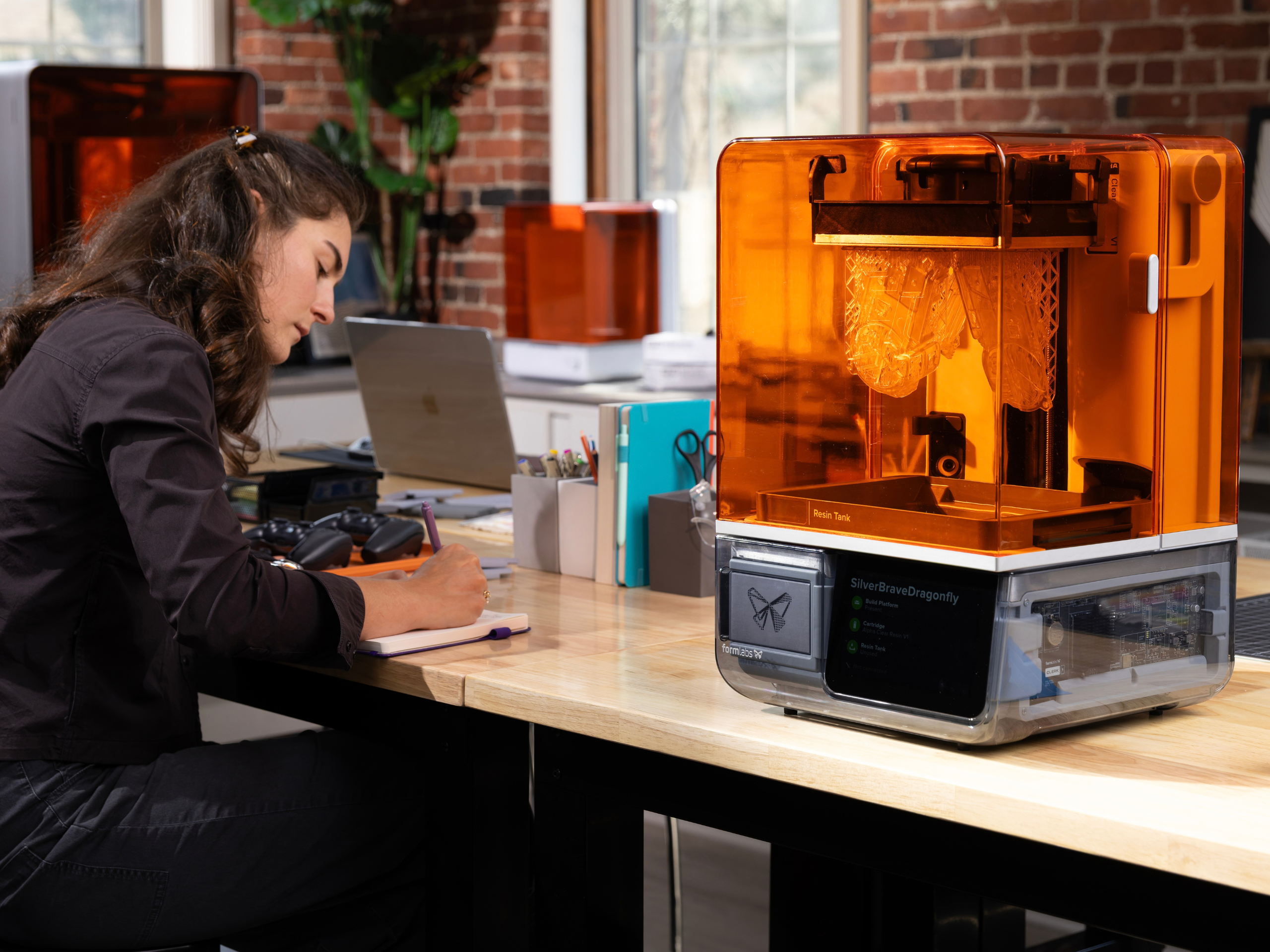

Formlabs Studio 1 3D Printer - Image 5

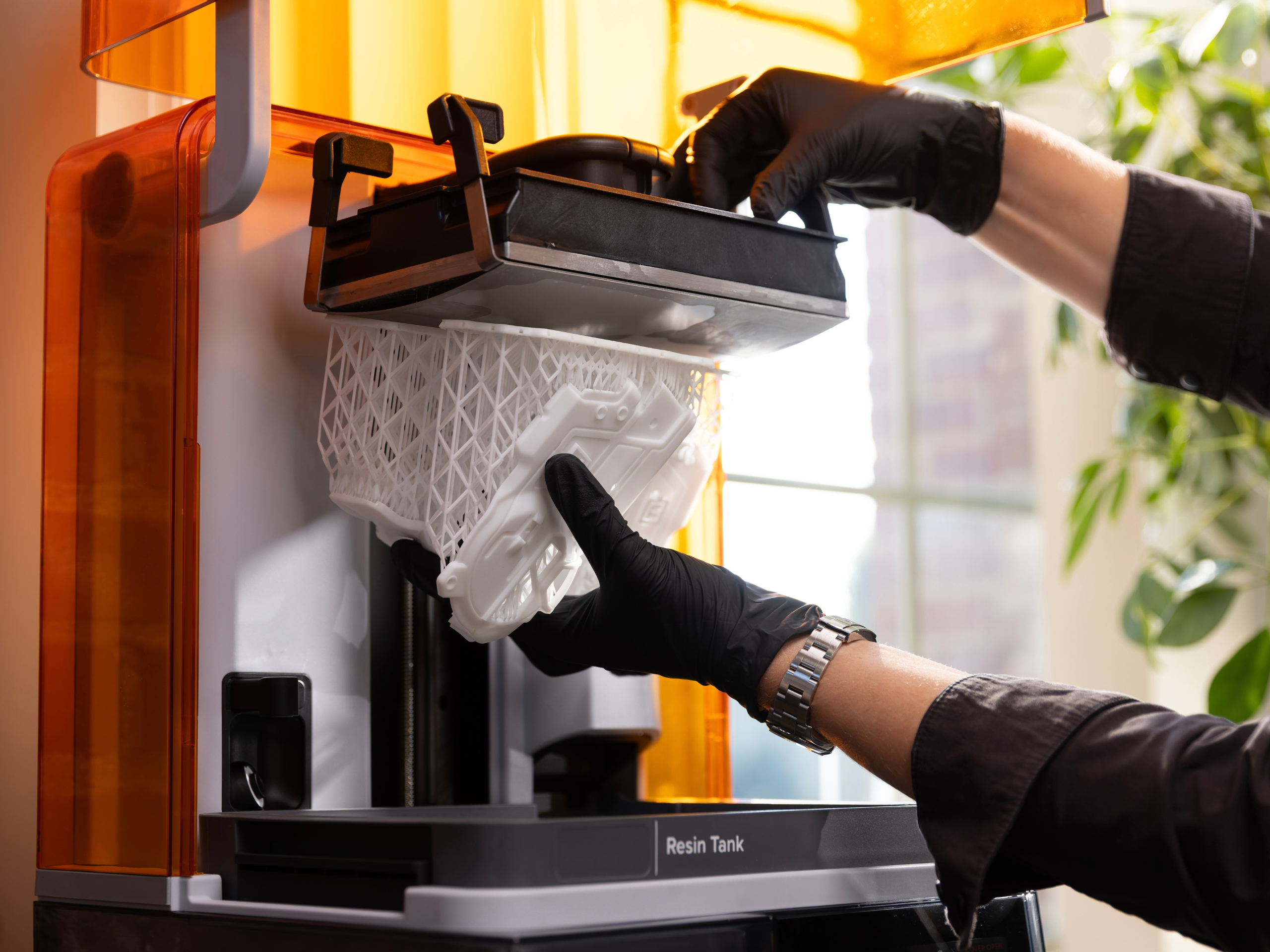

Formlabs Studio 1 3D Printer - Image 6

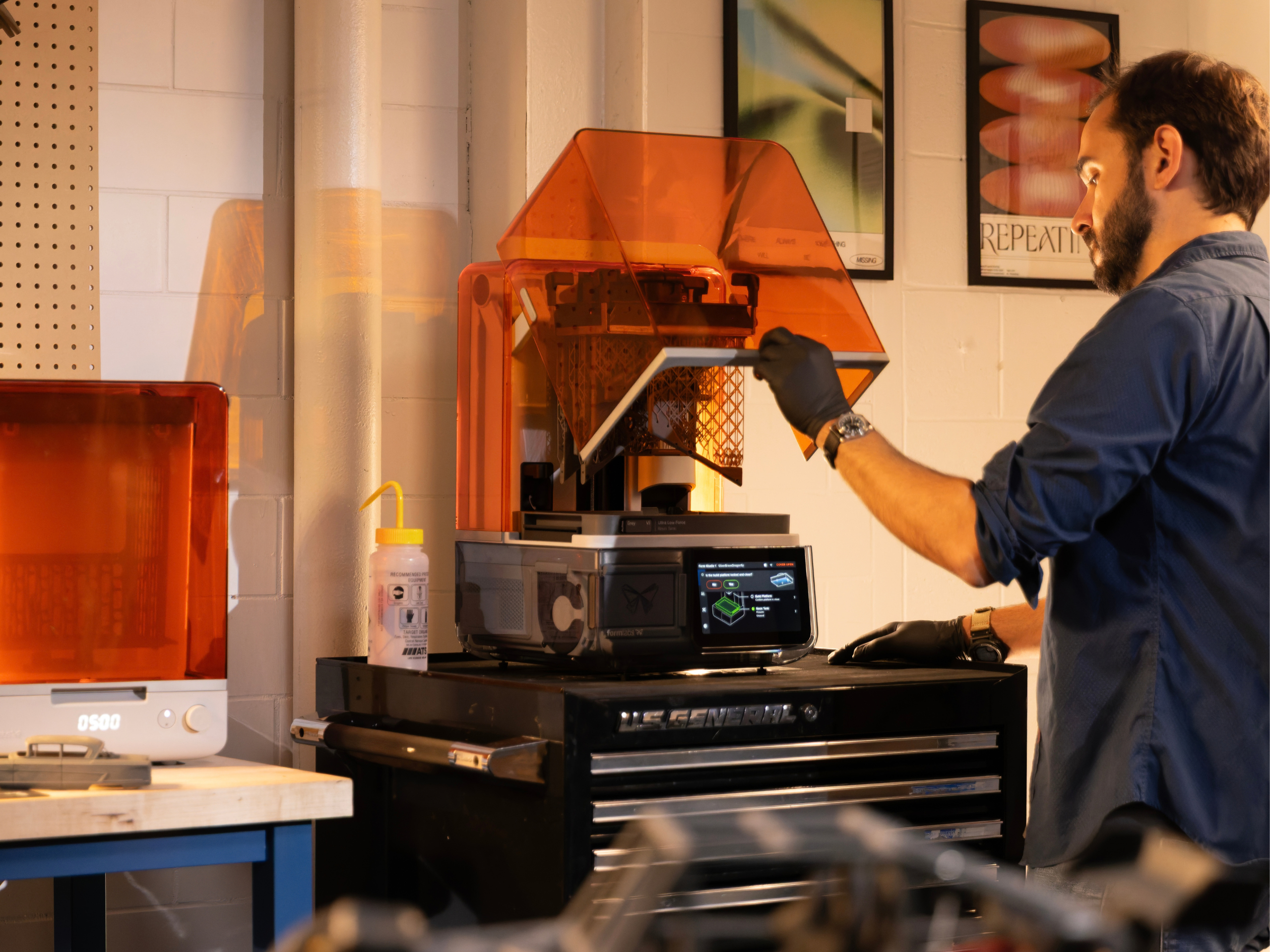

Formlabs Studio 1 3D Printer - Image 7

Formlabs Studio 1 3D Printer

Price range: $699.00 through $1,647.00

    REQUEST A QUOTE Attention Schools: Get 10% off any Formlabs Printer Package plus a free Open Material Mode! Email info@sourcegraphics.com or request a quote to get this deal – valid for accredited schools only.

The Formlabs Form Studio 1 3D Printer is recognized as Formlabs' most accessible SLA printer, marking a significant advancement in affordable, professional-grade resin printing. It features a powerful, long-lasting print engine and an open platform that enables impressive speed, with most parts printed in under two hours. Equipped with Low Force Display (LFD) architecture borrowed from the Form 4, it achieves speeds of up to 130 mm/h using Alpha Fast Resin. The printer delivers high-quality results with a 35 µm pixel resolution, ensuring sharp edges and smooth surfaces. Its integrated automatic resin handling system allows for quick, glove-free material swaps in under a minute. Additionally, Open Material Mode permits printing with any 405 nm resin without extra licensing fees, while five intelligent control systems monitor essential parameters like temperature and resin level, ensuring a smooth printing process.

To view what's included in each package, please continue to scroll to learn more or give us a call at (800) 791-9042.

Why Choose Source Graphics?

Ask our Experts

Call Us | Email Us | Request Callback

Features

Blazing Fast

Most parts finish in under two hours, with print speeds up to 130 mm/h on Alpha Fast Resin. Go from idea to finished part in a single afternoon.

Amazing Parts

A 35 µm pixel, pretuned anti-aliasing, and resins tuned specifically to the light engine deliver sharp edges, crisp details, and smooth surfaces straight off the printer.

Automatic, Mess-Free Alpha Resin Handling

Integrated, hands-free dispensing keeps the resin tank filled automatically, and easy material swaps take less than a minute. No pouring, no drips, and no mess.

Open Platform

Open Material Mode comes included, so you can print in any 405 nm resin with no license fee and no activation step.

Reliable by Design

Intelligent control systems monitor temperature, resin level, print force, and print status on every job, using the same sensor technology as Form 4. The proven Low Force Display print engine and a passive release texture reduce peel forces, which are a common cause of failed prints and tank wear on other resin printers.

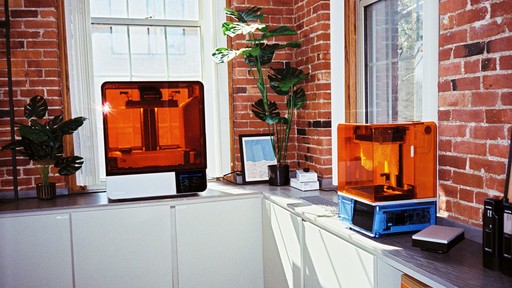

Taller Prints, Smaller Footprint

Form Studio 1 offers a 200 x 125 x 235 mm build volume. That's taller than Form 4 (235 mm vs. 210 mm) in a more compact machine that fits comfortably on a desk or workbench.

Connected and Flexible

Connect over dual-band Wi-Fi, Ethernet, or USB. A built-in 1080p camera, touchscreen, and the Formlabs mobile app let you monitor prints remotely, or run the printer fully offline if you prefer.

Specifications

Technology
Masked Stereolithography (MSLA)
Print Engine
Low Force Display™ (LFD)
Minimum dimensions for convenient access (W × D × H)
36 × 33 × 79 cm | 14.2 × 13 × 31.1 in
Printer dimensions (W × D × H)
34.2 × 31.5 × 50.2 cm | 13.5 × 12.4 × 19.8 in
Printer weight
14.3 kg | 31.5 lb
Build volume (W × D × H)
200 × 125 × 235 mm | 7.9 × 4.9 × 9.3 in Parts taller than 215 mm (8.5 in) require removing the resin tank with the build platform. When washing with Form Wash, remove the basket. When washing with Form Studio Wash+Cure, prints taller than 200 mm must be removed from the build platform before washing.
Layer thickness (Axis resolution)
25–300 microns | 0.001–0.012 in
XY resolution
35 micron pixel size with pretuned anti-aliasing | 0.0014 in
Optical power intensity
6 mW/cm² delivered to the print plane
Optical wavelength
405 nm
Resin cartridges
1
Resin dispensing system
Automated
Biocompatible materials
No
Supports
Auto-generated, Light-touch removal
Operating environment
18–28 °C | 64–82 °F Low ambient humidity
Operating temperature
Auto-heats resin to 25–45 °C (77–113 °F), depending on material
Temperature control
Direct resin heating
Power requirements
100–240 VAC, Maximum 3 A, 50/60 Hz, 300 W
Connectivity
Wi-Fi: 2.4, 5 GHz, Ethernet: 100 Mbit, USB: 2.0
Wi-Fi connectivity
Protocol: IEEE 802.11 a/b/g/n/ac/ax, Frequency: 2.4 GHz, 5 GHz, Supported security: WPA/WPA2
Ethernet connectivity
RJ-45 Ethernet, 100BASE-TX LAN Port Connect with a shielded Ethernet cable (not included): minimum Cat5.
USB connectivity
USB-C port with a USB-C to USB-A cable
Printer control
Interactive touchscreen
Alerts
Touchscreen alerts, SMS/email via Dashboard, Speaker for audio alerts, Mobile notifications via the Formlabs Form Mobile App
Camera
Integrated camera, 1920 × 1080 resolution (2 MP)
Print preparation
PreForm desktop software
File type
STL, OBJ, 3MF, and other CAD file formats.

What’s Included in Each Form Studio 1 Package?

Form Studio 1 Basic Package Form Studio 1 Complete Package Form Studio 1 Pro Package
  • Printer (Graphite)
  • Accessories Box
  • Form Studio 1 Build Platform
  • Form Studio 1 Resin Tank
  • Open Material Mode

Plus:

  • Limited-edition printer UI
  • Form Studio 1 plushie
  • First bottle of Alpha Resin at $29

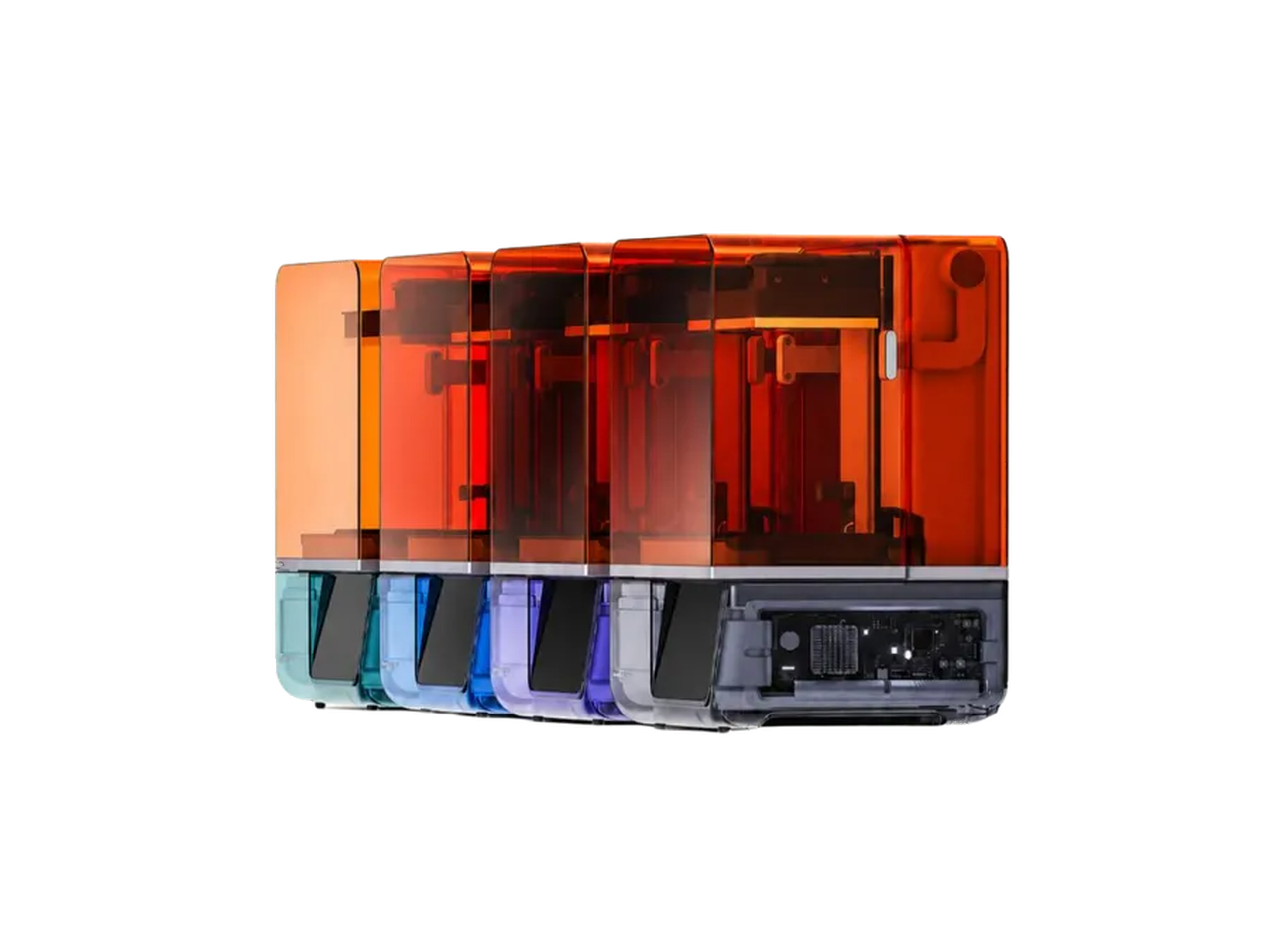

  • Printer (4 color options)
  • Accessories Box
  • Form Studio 1 Build Platform (2x)
  • Form Studio Wash+Cure
  • Form Studio 1 Resin Tank
  • Open Material Mode

Plus:

  • Limited-edition printer UI
  • Form Studio 1 plushie
  • First bottle of Alpha Resin at $29
  • Printer (4 color options)
  • Accessories Box
  • Form Studio 1 Build Platform Flex (2x)
  • Form Studio 1 Resin Tank
  • Form Wash L V2
  • Form Cure L V2
  • Open Material Mode

Plus

  • Limited-edition printer UI
  • Form Studio 1 plushie
  • First bottle of Alpha Resin at $29

Why Choose Formlabs Form Studio 1

The Formlabs Form Studio 1 brings the reliability and precision Formlabs is known for to a broader audience, starting at just $699. Designed for creators, hobbyists, educators, and small businesses, it features automatic resin handling, glove-free material swaps, and compatibility with a purpose-built wash, cure, and air filtration ecosystem. Whether you’re new to resin printing or stepping up from an entry-level machine, the Form Studio 1 makes professional SLA results clean, safe, and straightforward.

  • Professional Formlabs SLA print quality in a compact, approachable desktop form factor.
  • Automatic Resin Handling for cleaner, more consistent prints with less manual intervention.
  • Glove-free Material Swaps make changing resins faster and mess-free.
  • Compatible with an optional purpose-built wash, cure, and air filtration ecosystem.
  • Supports Open Material Mode for flexibility with third-party resins.
  • Trusted Formlabs Reliability — the same engineering behind the Form 4, now for a wider audience.
  • Ideal for creators, hobbyists, educators, jewelry designers, and small business prototyping.
