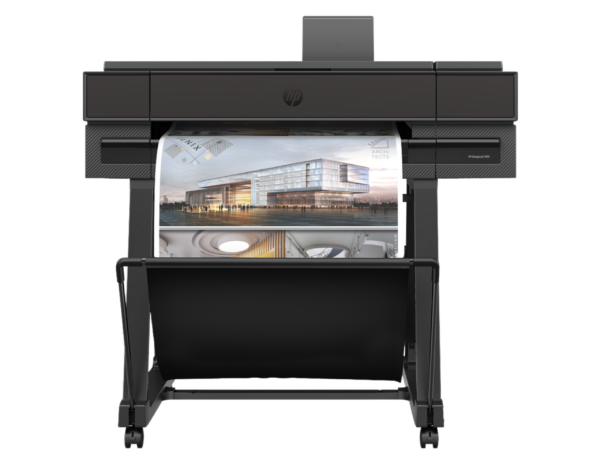

HP Designjet XT870 24″ SFP

Original price was: $2,495.00.Current price is: $2,245.00.

Request a Quote
The HP DesignJet XT870 24" SFP is a compact, high-performance large-format printer built for AEC, GIS, and MCAD professionals who need fast, precise output across multiple media sizes. Designed to deliver the world’s easiest multi-size printing experience, it produces crisp CAD linework and vibrant posters with pigment-based HP Flex Tech Inks—while streamlining workflows with automatic format switching, and HP Click job submission. Effortless multi-size printing From A4/A to A1/D, automatically switch between rolls and sheets with integrated handling—no manual media changes required. Fast, Professional-Quality Output HP Flex Tech Inks deliver sharp text, accurate lines, and durable color for everything from technical drawings to posters and signage. Smarter Workflows and Built-In Protection Simplify printing with HP Click (real-print preview and auto error detection) and help safeguard devices and data with HP Wolf Pro Security. Want to make sure Designjet XT870 is right for you? Schedule time with one of our dedicated HP Designjet XT870 Experts when it's most convenient for you.   Talk to our Certified HP Pagewide XL Pro Expert HERE

Ask our Experts

Call Us | Email Us | Request Callback

Features

Specifications

Maximum Print Speed
21 sec/page for D size, 120 D size prints per hour
Color Resolution
Up to 2400 x 1200 optimized dpi
Print Technology
HP Thermal Inkjet
Number of print cartridges
4 (C, M, Y, mK)
Compatible ink types
Pigment-based (C, M, Y, mK)
Print languages
TIFF, JPEG, URF, PDF, HP-GL/2, HP-RTL, CALS G4
Standard Connectivity
Gigabit Ethernet (1000Base-T), Wi-Fi 802.11b/g/n
Network Ready
Standard
Standard Memory
1 GB
Hard Disk
None
Non-printable area (cut-sheet)
0.2 x 0.2 x 0.2 x 0.2 in
Line Accuracy
±0.1%
Maximum optical density (black)
15 L* min/1.7 D
Finished output handling
Roll feed, automatic sheet feeder(50 sheet capacity), media bin, automatic horizontal cutter, sheet organizer (optional accessory)
Supported Media Sizes
Auto sheet feeder: A, B Manual feed: A, B, C, D
Supported Media Sizes
Auto sheet feeder: A4, A3 Manual feed: A4, A3, A2, A1
Custom Media Sizes
Auto sheet feeder: 8.3 x 11 to 12 x 18 in Manual feed: 8.3 x 11 to 24 x 66 in
Media Types
Bond and coated paper (bond, coated, heavyweight coated, plain, bright white, blueprint), technical paper (natural tracing), film (clear, matte, backlit), photographic paper (ID satin, ID gloss), self-adhesive (matte/gloss, polypropylene gloss, removable fabric), banner (polypropylene matte, PVC banner), fine art material (canvas)
Recommended Media Weight
0.01 to 0.057 lb/ft² (roll/manual feed) 0.01 to 0.045 lb/ft² (auto sheet feeder)
Standard Media Sizes
14.5 to 24 in
Roll External Diameter
5.1 in (rolls up to 300 ft)
Media Thickness
Up to 11.8 mil
Power
Input voltage (auto ranging): 100-240 V (±10%), 50/60 Hz (±3 Hz), 1.2 A max
Power Consumption
35 W (printing), <5.5 W (ready), <2.5 W (sleep), <0.2 W (off) auto-scheduled printer on/off usage
Operation Temperature Range
41 to 104°F
Software Included
HP Click Driver for Windows 11, HP Click App for Windows and Mac, HP App for Windows, Mac, Android and iOS, PartnerLink
Dimensions (W x D x H)
43.3 x 27.1 x 36.8 in
Weight
85 lb
Package Weight
104 lb
Recommended Media
HP Universal Bond Paper (FSC® certified) (recyclable), HP Coated Paper (FSC® certified) (recyclable), HP Heavyweight Coated Paper (FSC® certified) (recyclable), HP Recycled Removable Adhesive Fabric, HP Opaque Scrim Banner, HP Production Matte Canvas, HP Backlit Polyester Film, HP Universal Instant‑dry Gloss Photo Paper(FSC® certified), HP Universal Instant‑dry Satin Photo Paper (FSC® certified), HP Everyday Matte Polypropylene
